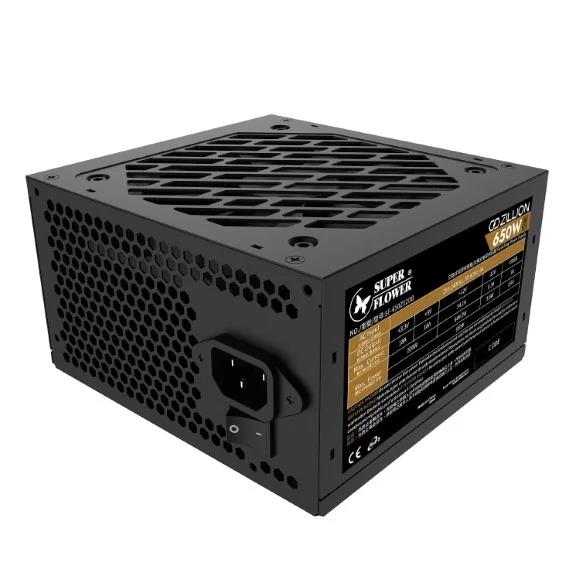

Super Flower Zillion DB 650W Power Supply – Reliable & Efficient 80+ Bronze PSU
₨15,000.00
- Type: ATX 650W 80+ Bronze power supply
- Key Spec 1: Bronze rated efficiency up to ~88% at 50% load
- Key Spec 2: DC-DC platform with 105°C main capacitors for stability
- Key Spec 3: Fixed flat cables for simpler cable routing
- Compatibility / Feature: Supports Intel/AMD CPUs and NVIDIA/ATI multi-GPU setups
- Packaging: Box Pack with PSU unit and fixed cable set
- Warranty: 1 Year warranty
Official Manufacturer Page:
Super Flower Zillion DB 650W power supply
The Super Flower Zillion DB 650W power supply delivers reliable and efficient power for everyday gaming builds and productivity PCs. Designed with 80+ Bronze certification, this PSU achieves approximately 85% efficiency at low and high loads, minimizing energy waste and heat production.
Reliable Power with Broad Compatibility
Built to support a wide range of systems, the Zillion DB 650W PSU meets ATX 12V v2.3 and EPS 12V v2.92 specifications, ensuring compatibility with Intel and AMD multi-core processors as well as NVIDIA SLI and ATI CrossFire multi-GPU configurations.
Stable Design with Protection
The PSU uses a DC-DC power platform and 105°C Taiwanese main capacitors for increased voltage stability and durability. A comprehensive protection suite—including Over Voltage (OVP), Over Current (OCP), Over Power (OPP), Over Temperature (OTP), Short Circuit (SCP), and No-Load Protection (NLP)—helps safeguard connected components.
Quiet Operation and Simple Setup
Equipped with a 120 mm fan, the Zillion DB 650W PSU maintains quiet operation under load while providing sufficient cooling. Fixed flat cables simplify installation and improve airflow inside the system case.
SPECIFICATIONS
- Model: Super Flower Zillion DB 650W (SF-650Z12DB)
- Power Output: 650 W continuous
- Efficiency Certification: 80+ Bronze (85% @ 20%/85–88% @ 50%/85% @ 100%)
- Power Specifications: ATX 12V v2.3 and EPS 12V v2.92 compliant
- AC Input: 200-240 V~, 50-60 Hz
- Fan: 120 mm sleeve-bearing cooling fan
- Protection Features: OVP, OCP, OTP, SCP, OPP, NLP
- Safety Certifications: TÜV, CB, CE, RoHS
- Main Capacitors: 105 °C Taiwanese capacitors
- Dimensions: 140 × 150 × 86 mm (L × W × H)
- Weight: ~1.5 kg
- Connectors:
- 1 × 20+4 pin ATX main
- 1 × 8 pin + 4+4 pin CPU
- 1 × PCIe 6+2 pin
- 1 × SLI (PCIe 6+2 ×2)
- 2 × (3 × SATA + 1 × PATA) chains
- Cable Type: Fixed flat cables
- +12 V Rail: Single rail design with 54.1 A maximum on +12 V
- Compatibility: ATX, BTX motherboards; multi-core CPUs; discrete GPU
