DeepCool PX850G PSU – 850W 80 Plus Gold PCIe 5.0 Fully Modular Power Supply
₨39,000.00
- Type: Fully modular 850W 80 Plus Gold certified power supply
- Key Spec 1: ATX12V v3.0 & PCIe 5.0 12VHPWR support
- Key Spec 2: ≥90% efficiency under typical load
- Key Spec 3: 135 mm Fluid Dynamic Bearing cooling fan with semi‑fanless mode
- Compatibility / Feature: Active PFC & comprehensive protections
- Packaging: Retail Box
- Warranty: 1 Year Warranty
Official Manufacturer Page:
DeepCool PX850G PSU – High‑Efficiency 850W Power for Modern Systems
The DeepCool PX850G PSU delivers reliable and efficient power for gaming rigs, creator workstations, and high‑performance desktops. Certified with 80 Plus Gold and Cybenetics Gold, this fully modular power supply achieves ≥90% efficiency under typical 50% loads while reducing wasted energy and heat.
PCIe 5.0 Support and ATX 3.0 Compliance
Designed for today’s high‑end hardware, the PX850G supports a PCIe 5.0 12VHPWR connector, capable of delivering up to 600 W to modern GPUs without adapters. Compliant with the latest ATX12V v3.0 standard, this PSU ensures stable power delivery and future‑proof compatibility with next‑gen PC builds.
Quiet Cooling and Modular Cable Design

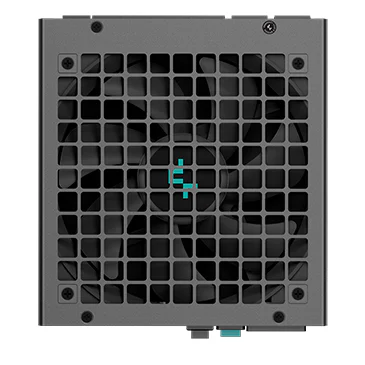

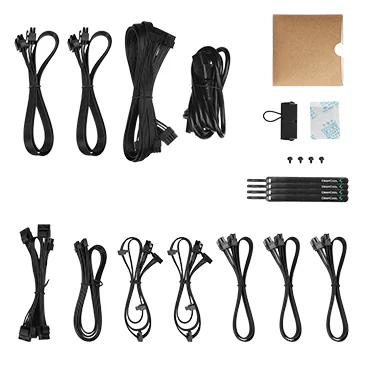

Equipped with a 135 mm Fluid Dynamic Bearing (FDB) fan, the PX850G PSU operates quietly and efficiently, with an optional semi‑fanless mode that keeps noise low under light loads. The fully modular cable design lets you attach only the connections you need, improving airflow and maintaining a clean system build.
Built‑In Protections for System Safety
This power supply includes a comprehensive suite of protections — including Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), and Under Voltage Protection (UVP) — helping safeguard your components against electrical faults.
SPECIFICATIONS
- Model: DeepCool PX850G 850W 80 Plus Gold PCIe 5.0 Fully Modular Power Supply
- Form Factor: ATX12V v3.0 compliant
- Wattage: 850 W continuous output
- 80 PLUS Certification: 80 Plus Gold / Cybenetics Gold efficiency
- Cooling: 135 mm Fluid Dynamic Bearing fan with semi‑fanless mode
- PFC: Active Power Factor Correction
- Topology: Active PFC + Half Bridge SRC LLC + DC‑to‑DC
- Capacitors: Full Japanese 105 °C electrolytic capacitors
- Hold‑Up Time: ≥16 ms under full load
- Efficiency: ≥90% under typical load (50% load)
- Protections: OPP, OVP, SCP, OTP, OCP, UVP
- Input Voltage: 100 – 240 V AC, 50 – 60 Hz
- Operating Temperature: 0 – 40 °C
- Connectors:
- 1× ATX 24‑pin main power
- 2× EPS 8‑pin CPU (4+4)
- 3× PCIe 6+2‑pin
- 1× PCIe 16‑pin 12VHPWR
- 8× SATA power
- 4× Peripheral 4‑pin Molex
- Dimensions: ~150 × 160 × 86 mm
- MTBF: ~100,000 hours
